Armstrong Flooring Multi-Purpose LVT Trim – Product and Installation Information

Product Features

  • Multi-Purpose Trim can accommodate LVT height transitions from 0-12mm
  • 8 installation plugs included per piece
  • Waterproof – Perfect for high moisture area such as bathrooms, kitchens and basements
Pieces Per Carton5
Length 95″ (241.3 cm)
Width2.5″ (6.4 cm)
Height 2″ (5.1 cm)
Length Per Carton 39 lin ft ( 11.9 ln m)
Carton Weight 10 lbs (4.5 kg)

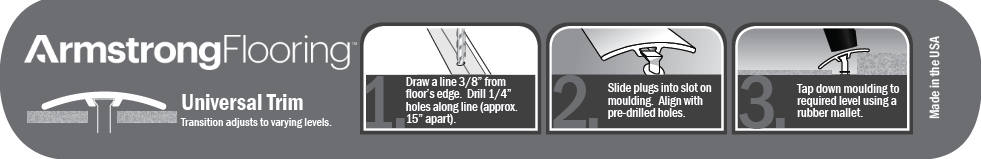

Installation Procedures

  1. Draw a line 3/8” from floor’s edge.  Drill 1/4”holes along line (approx. 15” apart).
  2. Slide plugs into slot on molding.  Align with pre-drilled holes.
  3. Tap down molding to required level using a rubber mallet.

Product Dimensions

Length: 94″ (238.8 cm)

Updated on November 17, 2023
