Armstrong Flooring S-761 Seam Adhesive for Sheet Flooring DATA SHEET & APPLICATION INSTRUCTIONS

Precautions

Caution Eye and Skin Irritant

SDS

S-761 Seam Adhesive SDS

For Use With

Product Information

TypeWater-based/resin
ColorWhite
TaggantsYes – Saturn Yellow
Coverage1/8” bead, approximately 144 lin. ft./bottle (43 lin. m.)
Units8 oz (236 mL) bottle; 12/ctn
Open TimeNone recommended
Working Time15 minutes
Dry TimeUser can walk on seam after 2 hours; 4-6 hours is full dry time
Shelf Life1 year, unopened
Freeze/Thaw StableNo, keep from freezing
VOC Content136 g/L; calculated and reported, SCAQMD 1168
Clean UpWet– clean, white cloth with neutral detergent and water
Dry– clean, white cloth and mineral spirits
AdvantagesNonflammable, ammonia-free and low odor
Contains low or no organic solvents
Manufacturing LocationUSA
LanguageEnglish / Spanish
Size8 ounces
Carton Item No.00761123
Item/Carton UPC042369319720 / 042369219723
Carton
Dimensions
15″ x 15″ x 18″
Carton Weight8.27 lbs
Items per Carton12
Cartons per Pallet145

Warranty

When Armstrong Flooring S-761 is used with a recommended Armstrong Flooring application, the Armstrong Flooring Guaranteed Installation System warranty applies.

Sustainability

LEED Credits: EQ 4.1
Sustainable Design Information
LEED Credit Information – Installation Products

Application Instructions

COMMERCIAL SHEET INSTALLATIONS S-761 Seam Adhesive Procedure

S-761 Seam Adhesive helps significantly reduce installation time compared to traditional seaming methods and allows for a broader range of installer skill sets. It is an alternative to heat welding in commercial installations of vinyl sheet flooring where an impervious floor covering is not required.

Note: Armstrong S-761 Seam Adhesive is not recommended in health care operating rooms, procedural rooms or any space where an aseptic environment is necessary. Heat-welded seams are recommended for those types of applications.

  1. Use a recess scribing tool to recess scribe all seams net (Fig.1).
  2. Insert a piece of scrap material beneath the scribe mark. With the scrap on the same side as the cutting hand, cut the seam at a 90-degree angle. Be sure to hold the knife blade straight up and down (Fig. 2).
  3. Remove the scrap piece of material.
  4. Using the applicator bottle, apply a 1/8″ bead of S-761 Seam Adhesive along the seam edge (Fig. 3).
  5. Tuck the seam edge into place, forcing the S-761 Seam Adhesive up through the seam (Fig. 4).
  6. Clean adhesive residue from the surface of the flooring using a clean, white cloth dampened with neutral detergent and water (Fig. 6).
  7. Roll the seam using a hand roller (Fig. 7).
  8. Remove burr at the seam by carefully skiving with the back of the linoleum knife (Fig. 8).
  9. Roll immediately in both directions with a 100-lb. roller.
Figure 1Figure 2
Figure 3Figure 4
Figure 5Figure 6
Figure 7Figure 8

RESIDENTIAL SHEET INSTALLATIONS – S-761 Seam Adhesive Procedure

See attached file below for illustrated instructions.

S-761 Seam Adhesive helps reduce installation time significantly compared to traditional seaming methods.

Modified Loose Lay Installations

  1. Double-cut the seam before applying the vinyl tape or adhesive.
  2. After seam is cut, fold back both edges and apply the tape or adhesive.
  3. After applying the tape or after proper open time with the adhesive place one side back down.
  4. Using the applicator bottle, apply a 1/8″ bead of S-761 Seam Adhesive along the seam edge.
  5. Tuck the seam edge into place, forcing the S-761 Seam Adhesive up through the seam.
  6. Clean adhesive residue from the surface of the flooring using a clean, white cloth dampened with neutral detergent and water.
  7. Roll the seam using a hand roller.
  8. Allow 2 hours before foot traffic and 4 to 6 hours to fully dry for rolling loads.

S-295 or S-299 Full Spread Adhesive Installations

  1. Double-cut the seam dry before applying the adhesive.
  2. After seam is cut, fold back both edges and apply the adhesive.
  3. After proper open time (dry-to-touch over non-porous substrate) place one side back down.
  4. Using the applicator bottle, apply a 1/8″ bead of S-761 Seam Adhesive along the seam edge.
  5. Tuck the seam edge into place, forcing the S-761 Seam Adhesive up through the seam.
  6. Clean adhesive residue from the surface of the flooring using a clean, white cloth dampened with neutral detergent and water.
  7. Roll the seam using a hand roller.
  8. Roll immediately in both directions with a 100-lb. roller.
  9. Allow 2 hours drying before foot traffic and 4 to 6 hours to fully dry for rolling loads.

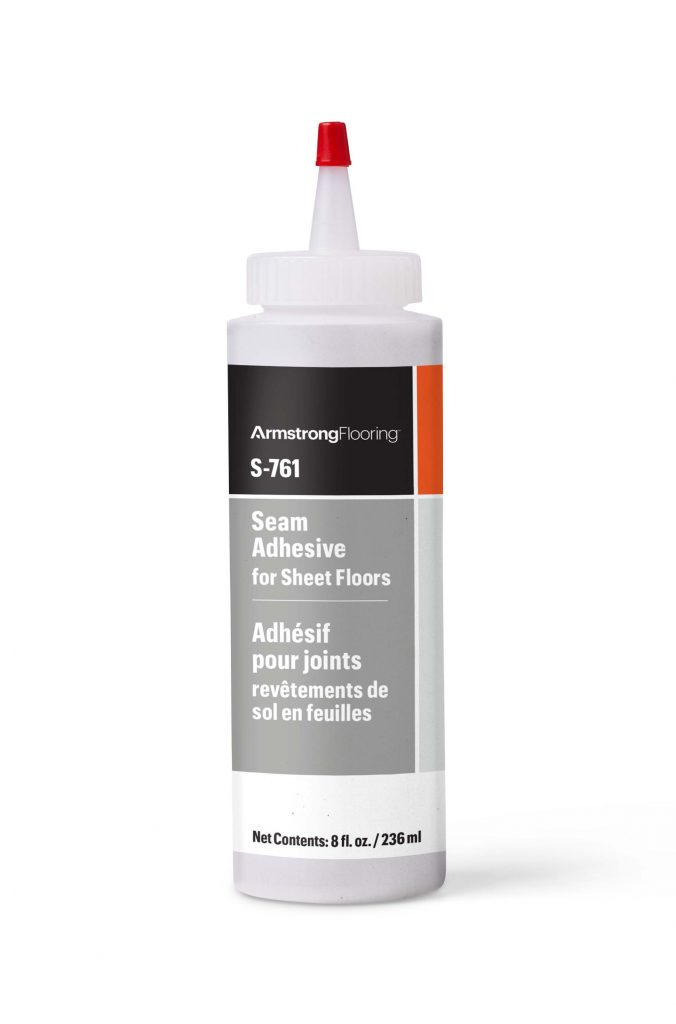

Product Image

Updated on April 12, 2023

Article Attachments
