Armstrong Flooring FlexStep Pro Residential Vinyl Sheet DATA SHEET

Product Information

Traffic Type: Residential; Builder Market
Gauge: .065″ (1.6 mm)
Roll Width: 12′ (3.7 m)
Roll Length: 56.25′ – 150′ (18.33 yd – 50 yd)
Wear Layer: .010″ (0.25 mm)
Coverage Per Roll: 90 – 200 sq yd (75 – 167 sq m) (675 – 1800 sq ft)
Shipping Weight: 2.3 lbs per sq yd (1 kg per sq yd)
Finish: Urethane No Wax with Diamond 10 Technology
Gloss: Ultra Low
Manufacturing Location: USA

Warranty

10 Year Residential Limited Warranty

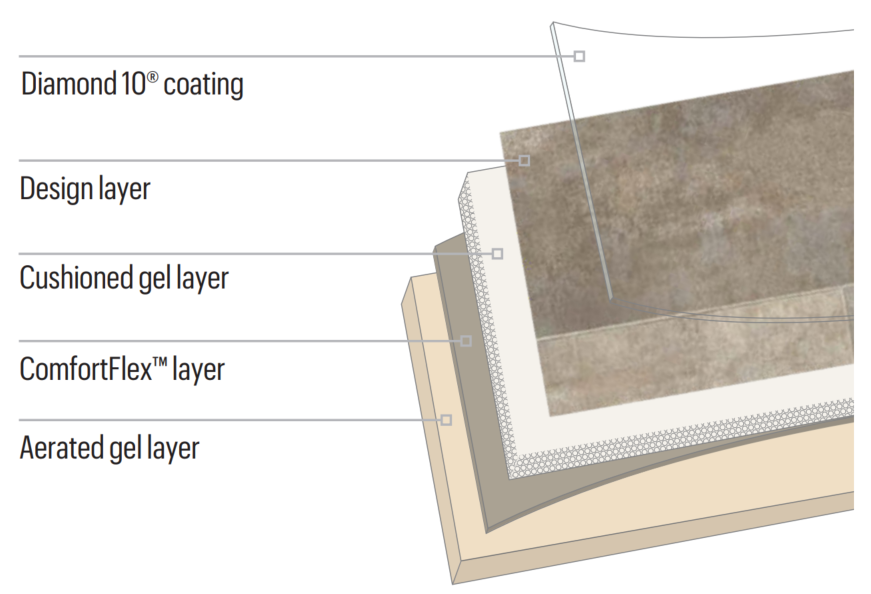

Product Structure

Product Features

  • See the FlexStep Pro collection at ArmstrongFlooring.com
  • Our Toughest, Most Durable Surface: Diamond 10® Technology makes our sheet scratch, scuff and stain resistant to keep floors looking newer, longer.
  • 100% Waterproof: Perfect for high moisture areas such as kitchens, bathrooms and laundry rooms.
  • Made in the USA: Armstrong Flooring™ Vinyl Flooring is manufactured with global and domestic content
  • Responsibly Made: All Armstrong Flooring™ Vinyl Sheet flooring products meet or exceed low emission standards for better indoor air quality as certified by FloorScore

REFERENCE SPECIFICATIONS: ASTM F 1303, Type I, Grade 3, Class C Backing
Complies with the requirements for floor coverings set forth in the HUD Minimum Property Standards for Housing (MPS 4910.1) for light traffic areas as referenced by ASTM F 1303, Type 1, Grade 3, Class C Backing. Note to user: This language supersedes our previous designations of “meets HUD/FHA requirements”.

FIRE TEST DATA:
ASTM E 648 Critical Radiant Flux– 0.45 watts/sq. cm. or more – Class I
ASTM E 662 Smoke – 450 or less
Numerical flammability ratings alone may not define the performance of the product under actual fire conditions. These ratings are provided only for use in the selection of products to meet the specified limits.

Sustainability

FloorScore Certificates

SDS

Resilient Sheet Flooring Products and Resilient Tile Flooring Products MIS

Installation

Location:All grade levels
System:Fiberglass-Reinforced Sheet Flooring Installation System
Pattern Match:Yes; See table below
Reverse Pieces:Do not reverse pieces (Install TM edge to non-TM edge)
Seams:Double-cut seams; apply S-761 Seam Adhesive or S-500 Seam Coating Kit (Discontinued)
Fitting:All methods
Adhesives:Acrylic double-faced tape for modified loose lay method;
Full Spread Installation Method
Armstrong S-299 Flooring adhesive
Armstrong S-295 Flooring Adhesive

Installation Special Precautions and Recommendations:

Care and Maintenance

Maintenance Guidelines:
All Residential and Light Commercial Vinyl Floors

Maintenance Products:
Cleaner: Once ‘n Done
Matte Polish: Satinkeeper
High Gloss Polish: Shinekeeper
Deep Cleaner & Stripper: New Beginning

Product Data Table

PatternColorFlexStep Pro
Pattern Number
SuffixPattern Match / Drop
(L x W / Drop)
Economy MatchDesign Scale
Oak CreekChestnut BrownG290140148″ x 72″6″ Random3-1/4 to 4-1/4″ oak planks
Chickasaw OakCocoa BrownG290240154″ x 72″6″ RandomVaried width weathered oak plank
Chickasaw OakAutumn GloryG290340154″ x 72″6″ RandomVaried width weathered oak plank
Hardland OakDriftwalkG290440154″ x 72″ / Half6″ Random6″ wide traditional oak plank
Ridge PlankSmokeG290540154″ x 72″ Half6″ RandomVariable width planks
RidgefieldCoral SandG290640124″ x 24″N/A12″ Slate tiles
Bedrock RidgeBrown SugarG290740148″ x 36″ / Half12″12″ x 9″ Rectangular pavers
Hardland OakEmeline GreyG290840154″ x 72″ / Half6″ Random6″ Wide traditional oak plank
Titan TimbersSilver DappleG290940154″ x 72″ / Half 12″ Random5 1/8″ Wide Traditional Oak Plank
Vessa TravertineCarbide CharmG291040154″ x 72″ / 6″ Progressive Drop18″18″ x 9″ Travertine paver
Vessa TravertineSpent GrindstoneG291140154″ x 72″ / 6″ Progressive Drop18″18″ x 9″ Travertine paver
SlatesdaleBeige G291240127″ x 36″9″9″ Ceramic paver with rich textured slate
StonegateWinchester BrownG291340154″ x 36″ / Half18″9″ Slate paver
EnglewoodGunstockG291440154″ x 36″ / Half4″ RandomOak wood strip
Carriage PathOyster WhiteG291540148″ x 48″12″12″ Modern limestone
Pattern ColorFlexStep Pro
Pattern Number
SuffixPattern Match / Drop
(L x W / Drop)
Economy MatchDesign Scale
Covington OakGunstockG291640154″ x 72″ / Half 6″ 5″ Wide traditional oak plank
Covington OakDovetailG291740154″ x 72″ / Half 6″ 5″ Wide traditional oak plank
Saratoga StoneCafé CrèmeG291840148″ x 72″12″12″
Saratoga StoneAntique BronzeG291940148″ x 72″12″12″ Natural stone
Brushedside OakSilver CrownG292040154″ x 72″ / Half6″ Random4″, 5″, 6″ Wire brushed oak
Selur TravertineIcing BaronG292140154″ x 48″ / Half6″ 6″ Travertine
Evendale SlateSnow GoldG292240154″ x 72″ Half18″9″ Slate planks
Skye Gate SlateWhite FlaxenG292340154″ x 72″ / Half6″ Random6″ Slate planks
Skye Gate SlateOld MuscatG292440154″ x 72″ / Half6″ Random6″ Slate planks
Hardland OakAlex GreyG292540154″ x 72″ / Half6″ Random6″ Wide traditional oak plank
Venetian Marble AlabasterG292640154″ x 36″N/A4.5″ Hex
Ridge PlankIronG292740154″ x 72″ / Half6″ RandomVariable width planks
Timber FrameDown Home BrownG292840154″ x 72″ / Half6″ Random7″ Plank
Hilborn RunStone GreyG292940154″ x 72″ / Half27″ Marks5″ x 27″
Stone HollowSlate RunG293040154″ x 72″ / Half27″ MarksOverall
Ceruse OakWolf RunG293140154″ x 72″ / Half6″ RandomVariable
Deep Creek TimbersHearthG293240154″ x 72″ / Half4″ Random5″
Pattern ColorFlexStep Pro
Pattern Number
SuffixPattern Match / Drop
(L x W / Drop)
Economy MatchDesign Scale
